Seco

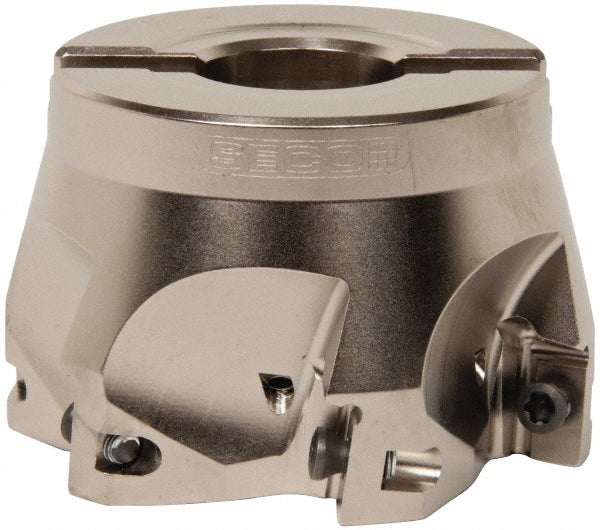

Indexable Milling Cutters - Seco 02694985
MFR# 02694985Series Power Turbo
$1,158.74List $1,209.60
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 02694985 indexable milling cutters. Series Power Turbo.
Specifications
Arbor hole diameter in1
Compatible insert size codeXO X1806
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodClamp; Screw
Keyway width (mm)9.70
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.6690
Maximum ramping angle1.50
Number of cutter inserts6
Number of flutes6
Overall height1.9690
Pitch typeMedium
RakePositive (Axial); Negative (Radial)
Tool applicationHelical Interpolation; Ramping; Slotting
