Seco

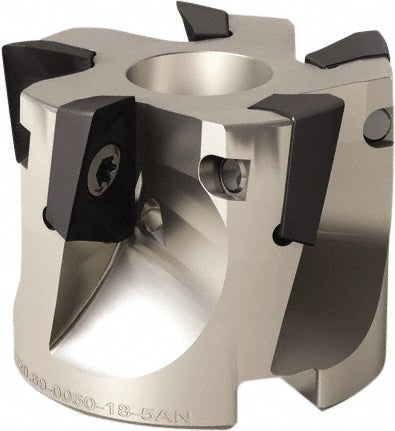

Indexable Milling Cutters - Seco 02694990
MFR# 02694990Series Power Turbo
$1,108.09List $1,177.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02694990 indexable milling cutters. Series Power Turbo.
Specifications
Arbor hole diameter in1
Compatible insert size codeXO X1806
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)90.00
Insert holding methodClamp; Screw
Keyway width (mm)16.00
Lead angle0/90
Maximum cutting diameter in4
Maximum depth of cut0.6690
Maximum ramping angle1.00
Number of cutter inserts5
Number of flutes5
Overall height1.9690
Pitch typeCoarse
RakePositive (Axial); Negative (Radial)
Tool applicationHelical Interpolation; Ramping; Slotting
