Seco

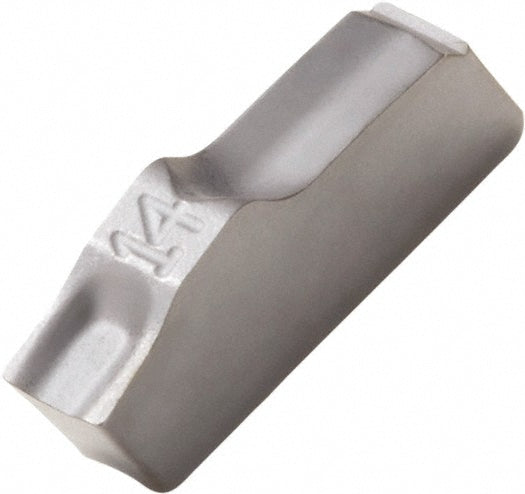

Solid Carbide Insert, Grade HX - Seco 02696774
MFR# 02696774Series Part-Off
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeHX
MaterialSolid Carbide
Description
The Seco 02696774 is a solid carbide indexable insert, grade HX. Suited for universal.
Specifications
Chipbreaker14
Coating processUncoated
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Lead angle6
Lead angle directionNeutral
Manufacturer gradeHX
Material gradeC2
Multi use toolNo
Overall length0.3540
Overall width0.1220
Primary workpiece materialUniversal
Single or double endSingle
