Seco
Indexable End Mills - Seco 02699117
MFR# 02699117Series Power Turbo
$561.37List $615.60
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

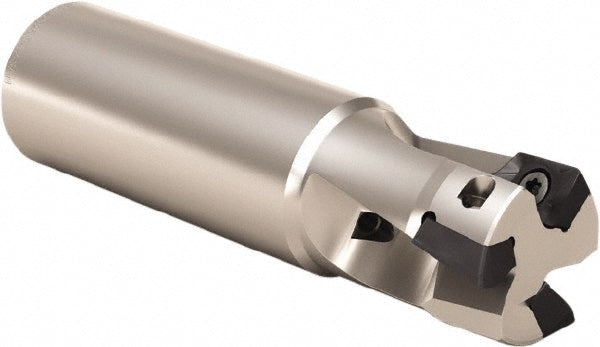

The Seco 02699117 indexable end mills. Series Power Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-18
Cutting diameter1
Cutting diameter (mm)25.40
Head length1.5
Insert compatibilityXO.X 1806
Insert holding methodScrew
Iso numberR217.69-01.00-0-182LAN
Lead angle90
Maximum depth of cut0.6690
Maximum rpm13800
Number of cutter inserts2
Number of flutes2
Overall length in7
RakeNegative
Shank diameter in1
Shank length5.5000
Shank typeCylindrical
Tool applicationMilling
