Seco

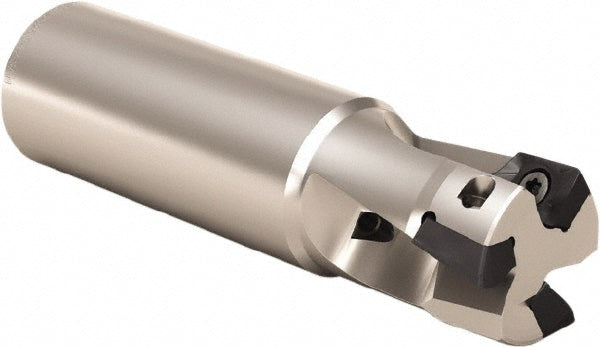

Indexable End Mills - Seco 02699130
MFR# 02699130Series Power Turbo
$555.07List $589.69
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02699130 indexable end mills. Series Power Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-18
Cutting diameter1
Cutting diameter (mm)25.40
Head length1.57
Insert compatibilityXO.X 1806
Insert holding methodScrew
Iso numberR217.69-01.00-3-18-2AN
Lead angle90
Maximum depth of cut0.6690
Maximum rpm13800
Number of cutter inserts2
Number of flutes2
Overall length3.9400
RakeNegative
Shank diameter in1
Shank length2.3600
Shank typeWeldon Flat
Tool applicationMilling
Usable length2.7950
