Seco
Solid Carbide Insert, Grade TGP35, TiCN - Seco 02707052
MFR# 02707052Series 150.10
$21.90List $28.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP35
MaterialSolid Carbide
CoatingTiCN
Description

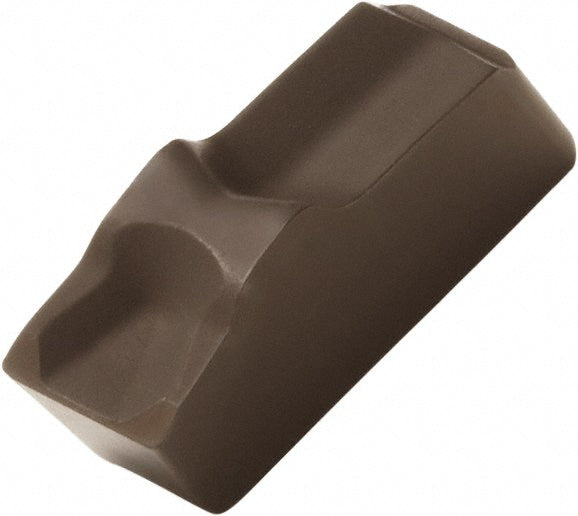

The Seco 02707052 is a solid carbide indexable insert, grade TGP35, TiCN coated. Suited for cast iron, hard material, steel.
Specifications
Chipbreaker16
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Lead angle6
Lead angle directionNeutral
Manufacturer gradeTGP35
Material gradeC6
Multi use toolNo
Overall length0.3540
Primary workpiece materialCast Iron; Hard Material; Steel
Single or double endSingle
