Seco
Solid Carbide Insert, Grade TGP35, TiCN - Seco 02707131
MFR# 02707131Series 150.10
$23.02List $29.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP35
MaterialSolid Carbide
CoatingTiCN
Description

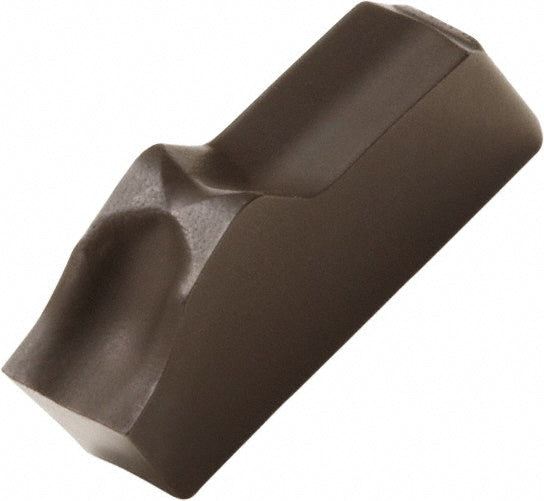

The Seco 02707131 is a solid carbide indexable insert, grade TGP35, TiCN coated. Suited for superalloy.
Specifications
Chipbreaker14
Coating finishTiCN
Coating processCVD
Corner radius0.0090
Cutting tool applicationParting
Cutting width0.1610
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Lead angle6
Lead angle directionNeutral
Manufacturer gradeTGP35
Material gradeC6
Multi use toolNo
Overall length0.3540
Overall width0.1610
Primary workpiece materialSuperalloy
Single or double endSingle
