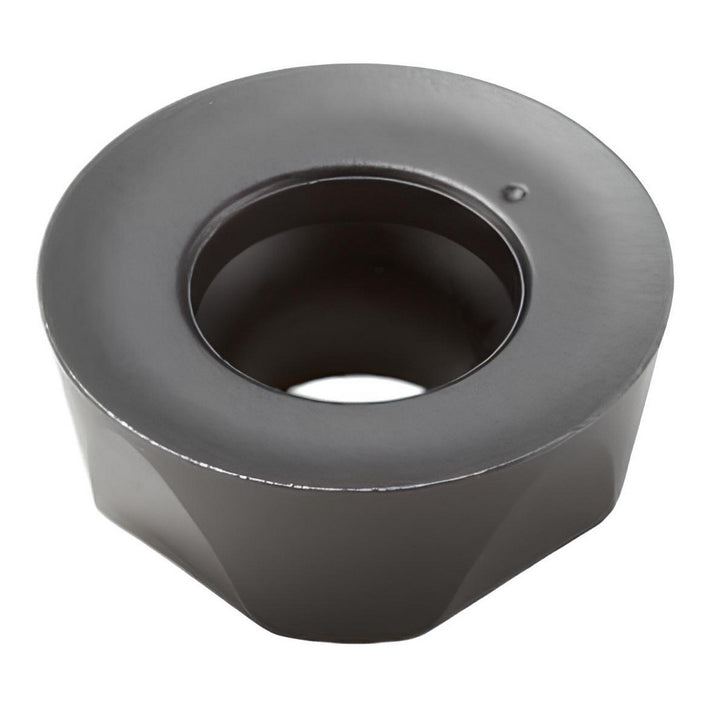

ROHT1204M0-M12 Solid Carbide Insert, Grade MS2500, TiCN - Seco 02709389

Seco

ROHT1204M0-M12 Solid Carbide Insert, Grade MS2500, TiCN - Seco 02709389

MFR# 02709389ISO/ANSI# ROHT1204M0-M12Cat# ROHT1204M0-M12Series ROHT-12

$20.97List $26.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeMS2500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02709389 is a ROHT1204M0-M12 solid carbide indexable insert, grade MS2500, TiCN coated. Suited for superalloys & titanium.

Specifications

Ansi codeROHT1204M0-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Cutter series compatibilityR217.24-12; R220.24-12
Cutting edge effective length0.2362
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleROHT
Iso codeROHT1204M0-M12
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberROHT1204M0-M12
Manufacturer gradeMS2500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle10
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
