Seco

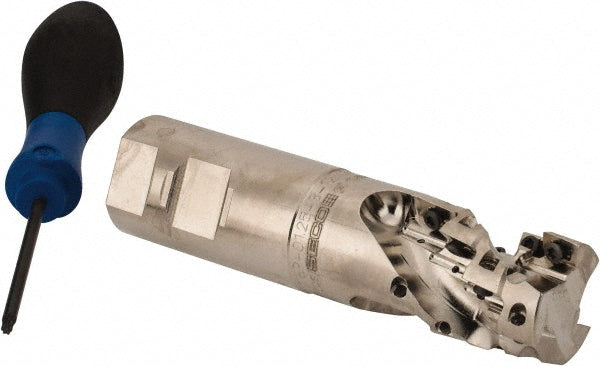

Indexable End Mills - Seco 02710789
MFR# 02710789Cat# R217.69-01.25-3-12M3ANSeries Super Turbo
$1,230.31List $1,339.20
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02710789 indexable end mills. Series Super Turbo.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-12
End mill typeHelical
Head length2.7500
Insert compatibilityXO.X 1204
Insert holding methodScrew
Iso numberR217.69-01.25-3-12M3AN
Lead angle90
Manufacturers catalog numberR217.69-01.25-3-12M3AN
Maximum depth of cut1.7300
Maximum rpm18400
Number of cutter inserts12
Number of flutes3
RakeNegative
Shank diameter in1-1/4
Shank length2.2500
Shank typeWeldon Flat
Tool applicationMilling
Tool materialSteel
Usable length3.8600
