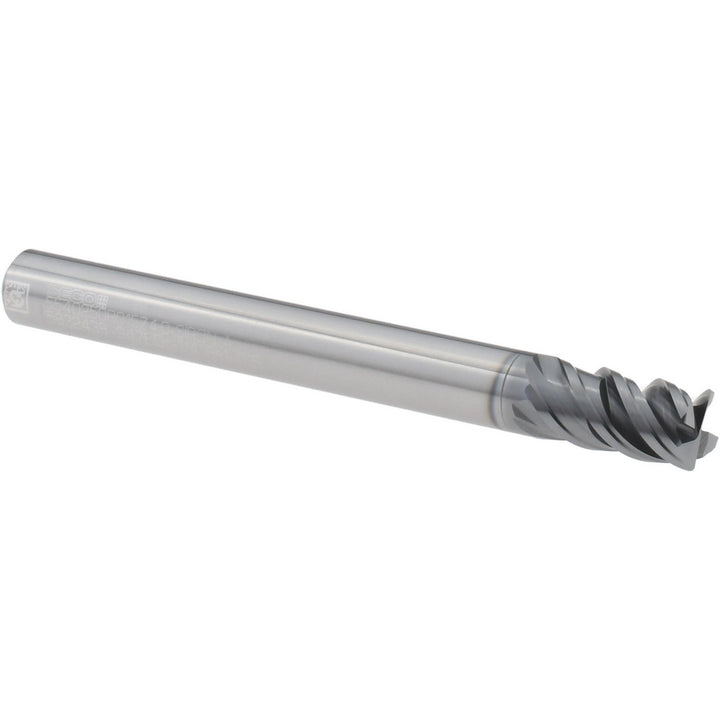

1/4" 4-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02711335

Seco

1/4" 4-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02711335

MFR# 02711335Cat# 5540250R015Z4.0SIRON-ASeries JS554

$101.10List $123.12 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingSIRON-A

Description

The Seco 02711335 is a 1/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series JS554.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Corner radius0.0150
Corner radius tolerance0.00080 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut in1/2
Length typeStandard
Manufacturers catalog number5540250R015Z4.0SIRON-A
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance-0.03/-0.04 mm
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal
Shank diameter in1/4
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
