Seco

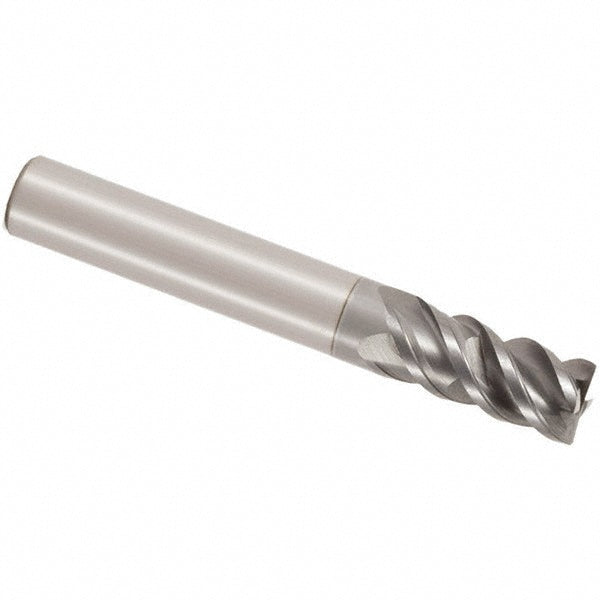

1/2" 4-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02711614

MFR# 02711614Cat# 5540500R015Z4.0SIRON-ASeries JS554

$190.83List $236.52 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02711614 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. 1 length of cut, 3-1/2 overall length. Series JS554.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Corner radius0.0150

Corner radius tolerance0.00080 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut in1

Length typeStandard

Manufacturers catalog number5540500R015Z4.0SIRON-A

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.03/-0.05 mm

Number of flutes4

Overall length in3-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
