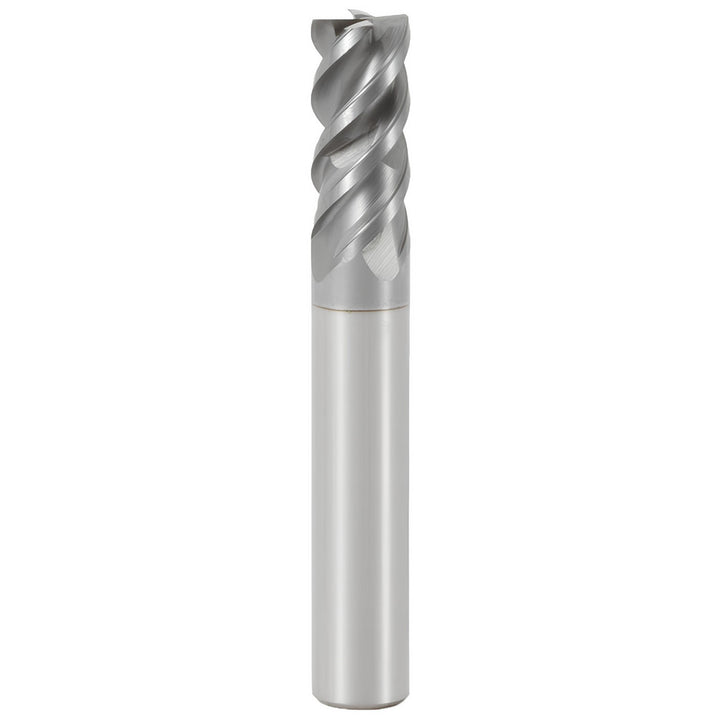

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02711626
MFR# 02711626Cat# 5540625Z4.0-SIRON-ASeries JS554
$285.75List $366.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 02711626 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1-1/4 length of cut, 3-3/4 overall length. Series JS554.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0079
Chamfer width0.0079
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle48
Helix styleHigh
Length of cut in1-1/4
Length typeShort
Manufacturers catalog number5540625Z4.0-SIRON-A
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter toleranceh5
Number of flutes4
Overall length in3-3/4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length in1-1/4
Shank diameter in5/8
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
