Seco

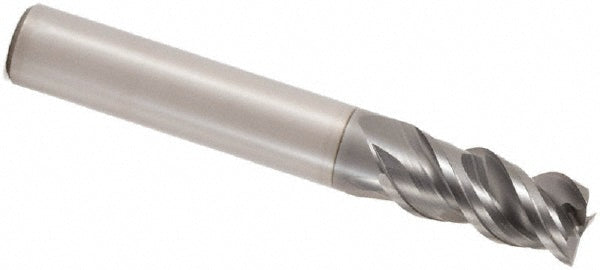

1/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02712684
MFR# 02712684Cat# 5530125Z3.0-SIRON-ASeries JS553
$85.13List $103.68
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 02712684 is a 1/8 3-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1/4 length of cut, 2 overall length. Series JS553.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0016
Chamfer width0.0016
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle48
Helix styleHigh
Length of cut in1/4
Length typeShort
Manufacturers catalog number5530125Z3.0-SIRON-A
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerancee7
Number of flutes3
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length in1/4
Shank diameter in1/8
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
