Seco

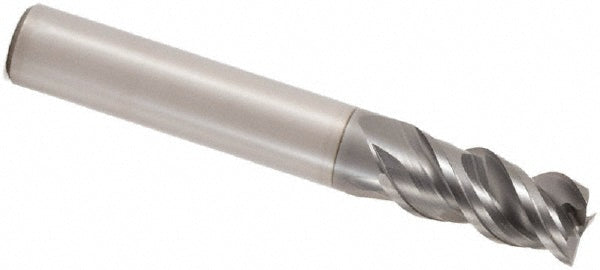

1/4" 3-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02712689

MFR# 02712689Cat# 5530250R015Z3.0SIRON-ASeries JS553

$73.98List $91.70 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02712689 is a 1/4 3-flute Solid Carbide (Micrograin) corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series JS553.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut in1/2

Length typeShort

Manufacturers catalog number5530250R015Z3.0SIRON-A

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1/4

Mill diameter tolerance-0.02/-0.04 mm

Number of flutes3

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
