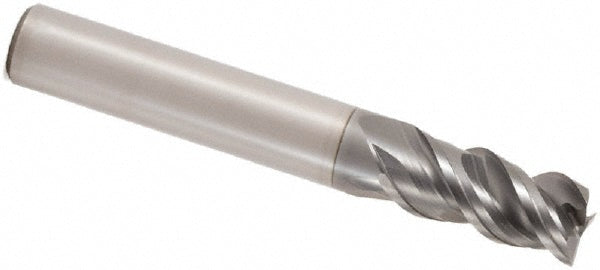

5/16in" 3-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02712693

Seco

5/16in" 3-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02712693

MFR# 02712693Cat# 5530312R015Z3.0SIRON-ASeries JS553

$117.06List $142.57 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16in
Flutes3
MaterialSolid Carbide
CoatingSIRON-A

Description

The Seco 02712693 is a 5/16in 3-flute Solid Carbide (Micrograin) corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. 5/8in length of cut, 2-1/2in overall length. Series JS553.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut in5/8in
Length typeShort
Manufacturers catalog number5530312R015Z3.0SIRON-A
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in5/16in
Mill diameter tolerance-0.03/-0.04 mm
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal
Shank diameter in5/16in
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
