Seco

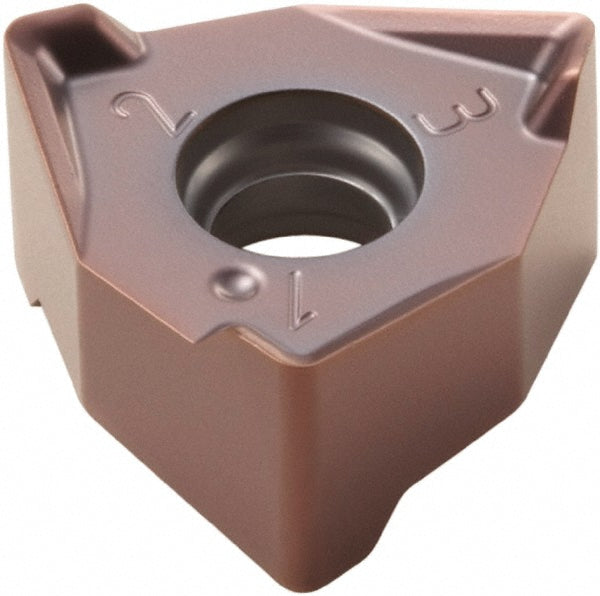

XNEX080612TR-MD15 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02719293
MFR# 02719293ISO/ANSI# XNEX080612TR-MD15Cat# XNEX080612TR-MD15Series XNEX-08
$33.18List $42.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02719293 is a XNEX080612TR-MD15 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeXNEX080612TR-MD15
Chip breakerMD15
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080612
Insert styleXNEX
Iso codeXNEX080612TR-MD15
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080612TR-MD15
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle17
Relief angle0.00
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
