Seco

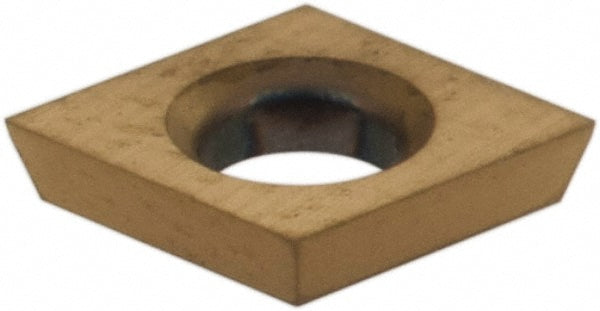

CDCB04T0005 Carbide Insert, Grade CP500, TiAlN - Seco 02723695
MFR# 02723695ISO/ANSI# CDCB04T0005Series CDCB-Flat Top
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02723695 is a CDCB04T0005 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.0803
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code1.21.20
Insert styleCDCB
Iso codeCDCB04T0005
Lead angle80
Length0.1587
Manufacturers catalog number02723695
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1567
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle0
Relief angle15
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Width0.1563
