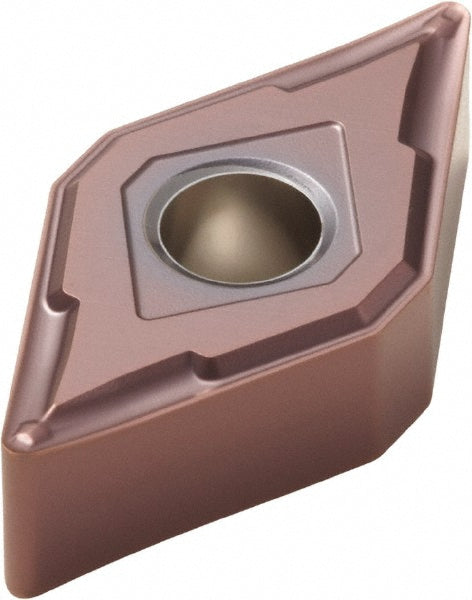

DNMG150608-MF2 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730819

MFR# 02730819ISO/ANSI# DNMG442-MF2Series DNMG-MF2

$26.77List $34.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02730819 is a DNMG150608-MF2 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Ansi size code442
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMG442-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG150608-MF2
Iso size code150608
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02730819
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
