Seco

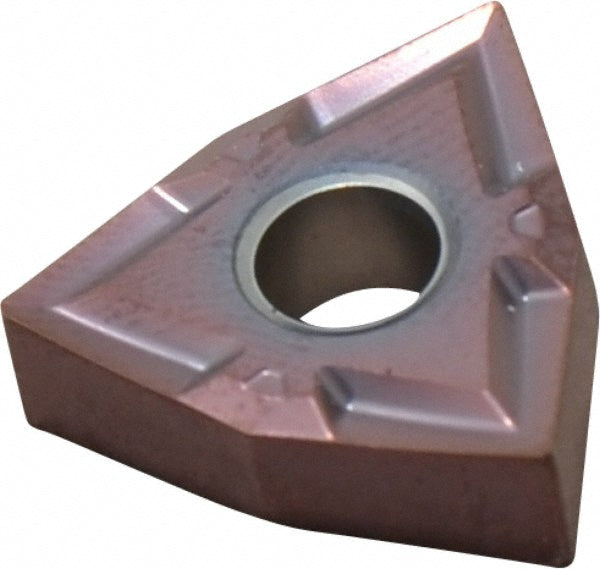

WNMG080404-MF1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730823
MFR# 02730823ISO/ANSI# WNMP431-MF1Series WNMP-MF1
$21.55List $27.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02730823 is a WNMG080404-MF1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG080404-MF1
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02730823
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.3346
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
