Seco

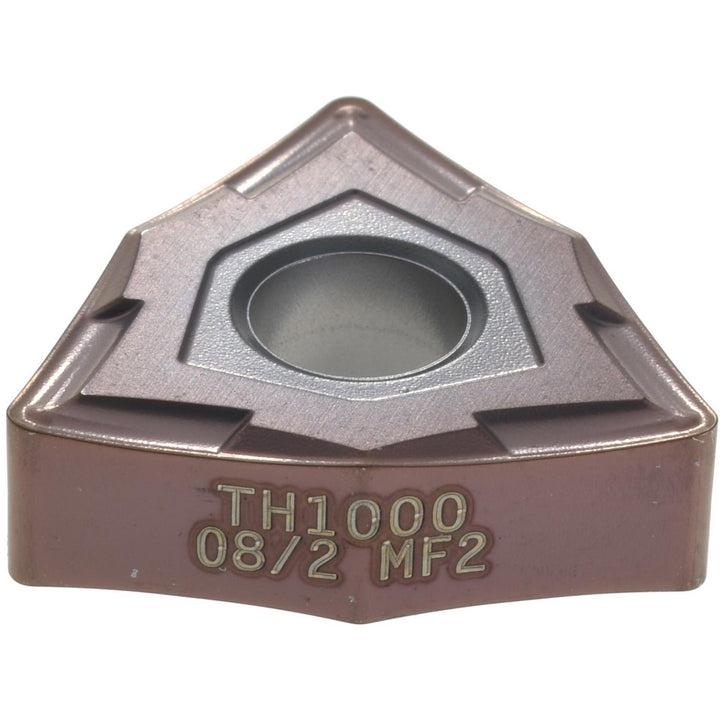

WNMG080408-MF2 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730826
MFR# 02730826ISO/ANSI# WNMG080402Series WNMG-MF2
$26.22List $33.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02730826 is a WNMG080408-MF2 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberWNMG432-MF2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MF2
Iso insert codeWNMG080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number02730826
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.3307
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
