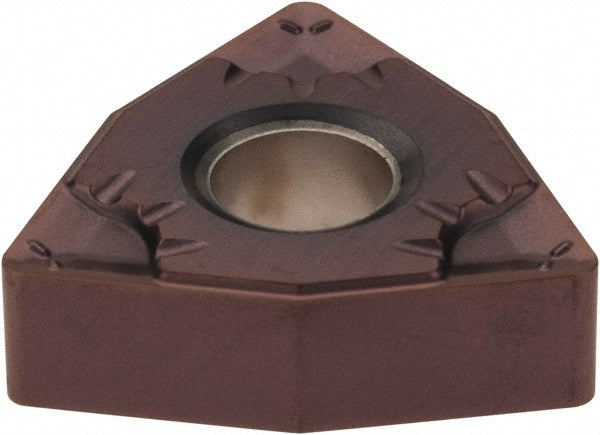

WNMG080408-MF5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730828

Seco

WNMG080408-MF5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730828

MFR# 02730828ISO/ANSI# WNMG432-MF5Series WNMG-MF5

$21.55List $27.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02730828 is a WNMG080408-MF5 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Chip breakerMF5
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MF5
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02730828
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.1063
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
