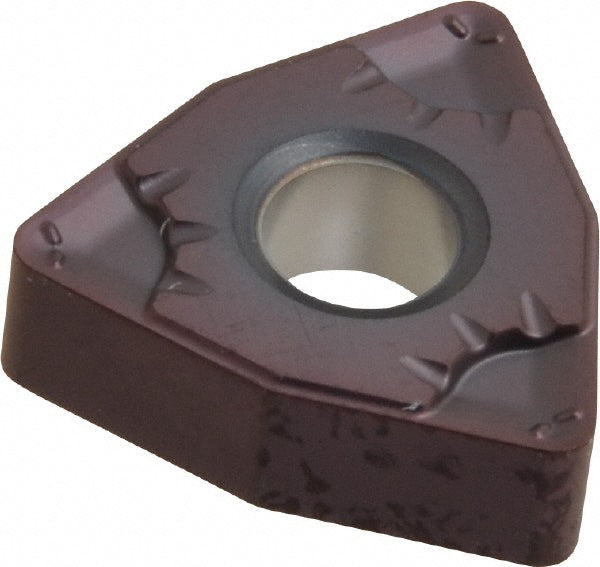

WNMG080412-MF5 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02730829
MFR# 02730829ISO/ANSI# WNMG433-MF5Series WNMG-MF5
$21.55List $27.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTH1000
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 02730829 is a WNMG080412-MF5 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.
Specifications
Chip breakerMF5
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG433-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-MF5
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02730829
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.1063
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
