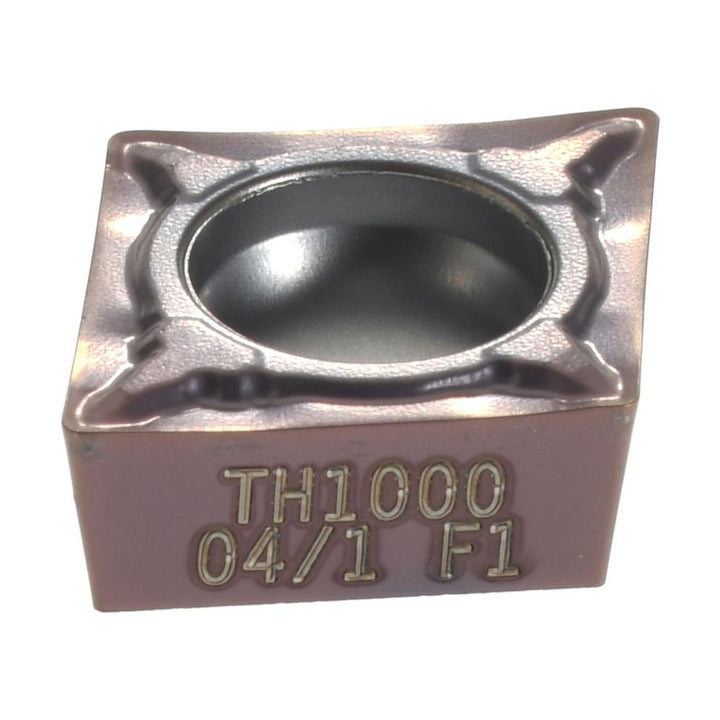

CCMT09T304-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02731806

Seco

CCMT09T304-F1 Carbide Insert, Grade TH1000, TiAlSiN - Seco 02731806

MFR# 02731806ISO/ANSI# CCMT09T304Series CCMT-F1

$15.58List $19.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTH1000
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 02731806 is a CCMT09T304-F1 carbide indexable insert, grade TH1000, TiAlSiN coated. Suited for superalloys & titanium, hard material.

Specifications

Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-F1
Iso insert codeCCMT09T304
Iso size code09T304
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number02731806
Manufacturer gradeTH1000
Material gradeS05; H05
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
