Seco

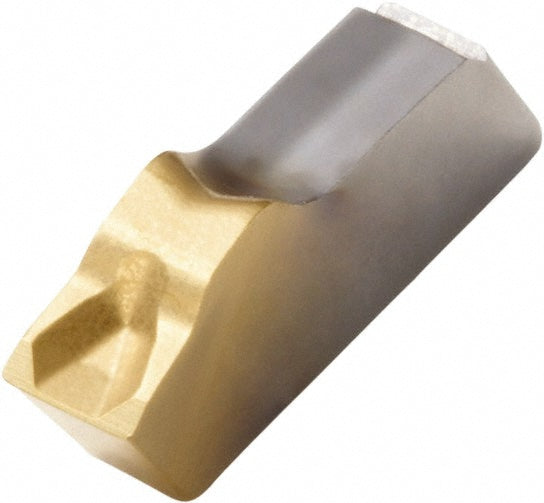

Solid Carbide Insert, Grade CP500, TiAlN - Seco 02743123
MFR# 02743123Series 150.10
$22.06List $28.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02743123 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chipbreaker16
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1220
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Lead angle6
Lead angle directionNeutral
Manufacturer gradeCP500
Material gradeMicrograin
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Single or double endSingle
