Seco
Solid Carbide Insert, Grade CP500, TiAlN - Seco 02743146
MFR# 02743146Series 150.10
$23.16List $29.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description

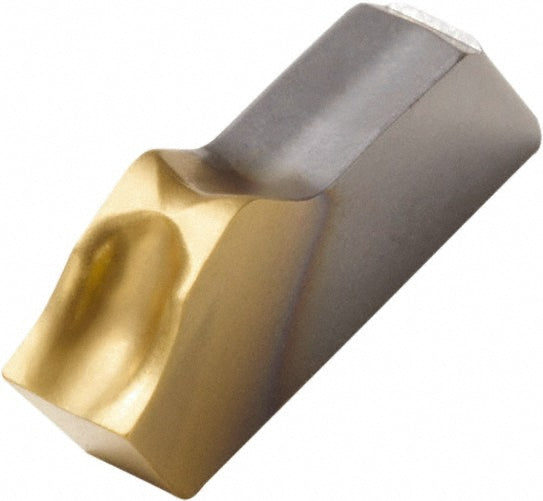

The Seco 02743146 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiAlN
Coating processPVD
Corner radius0.0090
Cutting tool applicationParting
Cutting width0.1610
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Lead angle6
Lead angle directionNeutral
Manufacturer gradeCP500
Material gradeMicrograin
Multi use toolNo
Overall length0.3540
Overall width0.1610
Primary workpiece materialUniversal
Single or double endSingle
