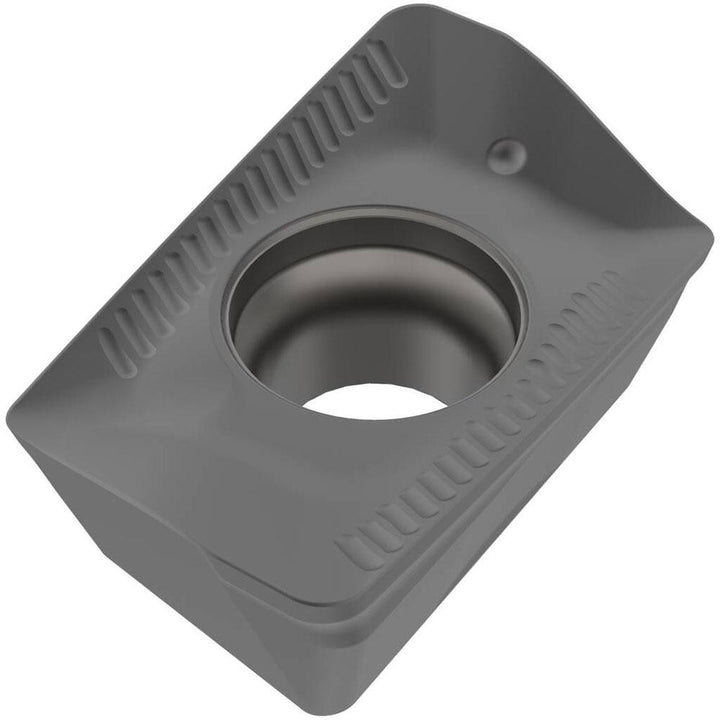

XOMX120408TR-ME08 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02743924
MFR# 02743924ISO/ANSI# XOMX120408TR-ME08Cat# XOMX120408TR-ME08Series XOMX-12
$24.08List $30.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMM4500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02743924 is a XOMX120408TR-ME08 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeXOMX120408TR-ME08
Chip breakerME08
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-ME08
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120408TR-ME08
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle20.1
Relief angle15
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
