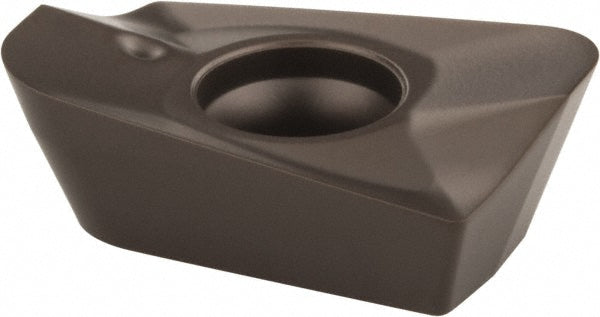

XOMX180631R-M10 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02743956
MFR# 02743956ISO/ANSI# XOMX180631R-M10Cat# XOMX180631R-M10Series XOMX-18
$31.40List $40.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMM4500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02743956 is a XOMX180631R-M10 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeXOMX180631R-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius0.1220
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180631
Insert styleXOMX
Iso codeXOMX180631R-M10
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180631R-M10
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle21
Relief angle15.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4409
