Seco

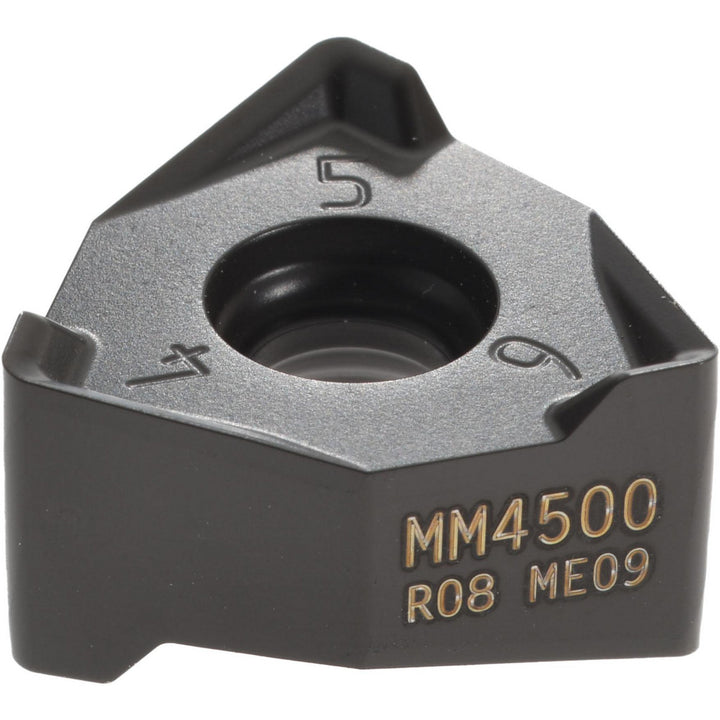

XNEX080608TR-ME09 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02743972
MFR# 02743972ISO/ANSI# XNEX080608TR-ME09Cat# XNEX080608TR-ME09Series XNEX-08
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMM4500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02743972 is a XNEX080608TR-ME09 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeXNEX080608TR-ME09
Chip breakerME09
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608TR-ME09
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608TR-ME09
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle27
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
