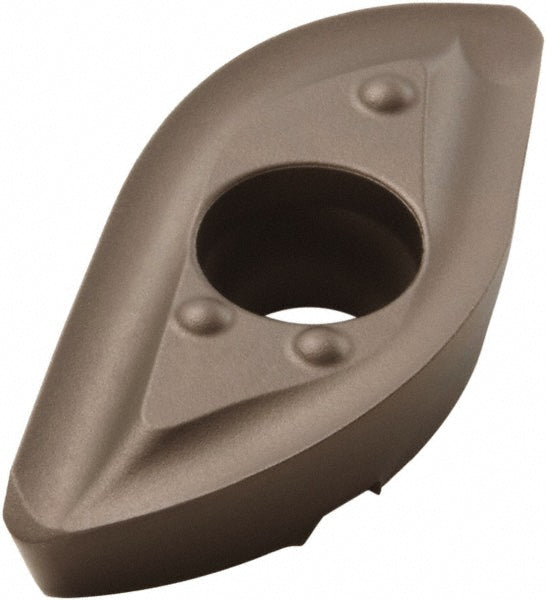

218.20-0.750ER-M10 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744187

Seco

218.20-0.750ER-M10 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744187

MFR# 02744187ISO/ANSI# 218.20-0.750ER-M10Cat# 218.20-0.750ER-M10Series 218.20-0.750

$103.58List $132.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeMM4500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02744187 is a 218.20-0.750ER-M10 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.

Specifications

Ansi code218.20-0.750ER-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius in3/4
Cutter series compatibilityR218.20-01.50
Cutting edge styleHoned
Hole diameter0.2283
Included angle degree90
Inscribed circle0.5953
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.750
Insert size code0.750ER
Insert style218.20
Iso code218.20-0.750ER-M10
Length1.4346
Length range1.0000+
Manufacturers catalog number218.20-0.750ER-M10
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut1.3390
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle-2
Relief angle15
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.3002
Thickness range0.2500 to 0.3500
Width0.5953
