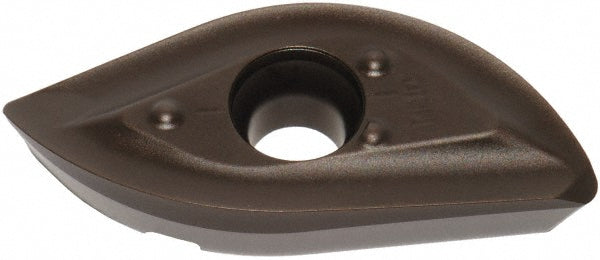

218.20-250ER-ME12 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744581

Seco

218.20-250ER-ME12 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744581

MFR# 02744581ISO/ANSI# 218.20-250ER-ME12Cat# 218.20-250ER-ME12Series 218.20-250

$138.10List $177.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC25/32
ShapeBall Nose
GradeMM4500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02744581 is a 218.20-250ER-ME12 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.

Specifications

Ansi code218.20-250ER-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius in63/64
Cutter series compatibilityR218.20-50
Cutting edge styleHoned
Hole diameter0.2717
Included angle degree90
Inscribed circle in25/32
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size250
Insert size code250ER
Insert style218.20
Iso code218.20-250ER-ME12
Length1.8831
Length range1.0000+
Manufacturers catalog number218.20-250ER-ME12
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut1.7320
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle6
Relief angle15
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.4000
Thickness range0.3500 to 0.5000
Width in25/32
