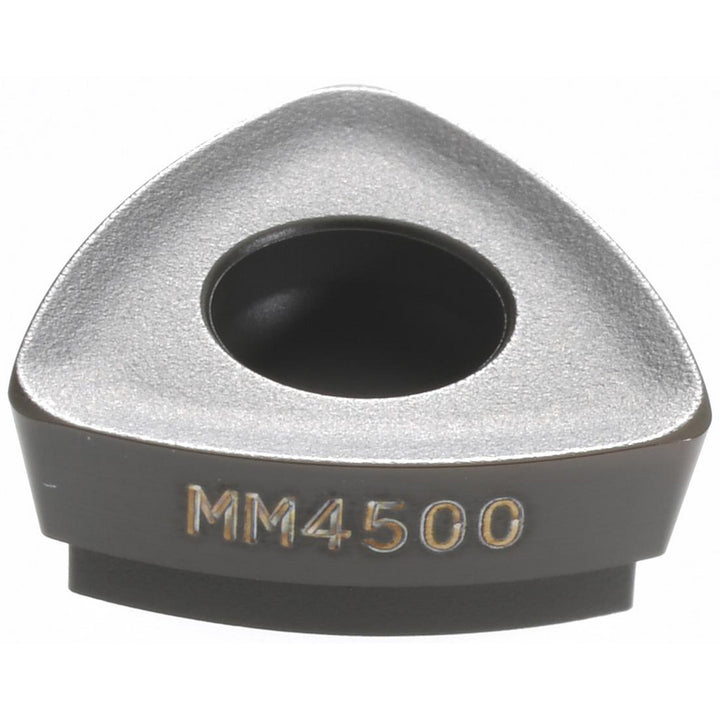

218.19-125T-T3-M07 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744585

Seco

218.19-125T-T3-M07 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02744585

MFR# 02744585ISO/ANSI# 218.19-125T-T3-M07Cat# 218.19-125T-T3-M07Series 218.19-125

$27.87List $35.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeMM4500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02744585 is a 218.19-125T-T3-M07 solid carbide indexable insert, grade MM4500, TiCN coated.

Specifications

Ansi code218.19-125T-T3-M07
Chip breakerM07
Coating finishTiCN
Coating processCVD
Convex radius0.4921
Corner radius in1/32
Cutter series compatibilityR218.19-25; R217.21-R125; R220.21-R125
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree60
Inscribed circle0.3504
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size125
Insert size code125T-T3
Insert style218.19
Iso code218.19-125T-T3-M07
Length0.3504
Length range0.3200 to 0.4000
Manufacturers catalog number218.19-125T-T3-M07
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges3
RakePositive
Rake angle10
Relief angle12.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3504
