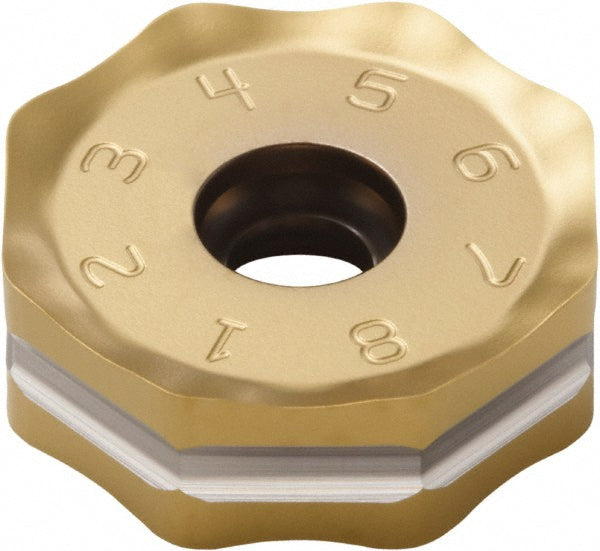

ONMU090520ANTN-M12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02747692
MFR# 02747692ISO/ANSI# ONMU090520ANTN-M12Cat# ONMU090520ANTN-M12Series ONMU-09
$43.20List $55.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02747692 is a ONMU090520ANTN-M12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeONMU090520ANTN-M12
Chip breakerM12
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.2874
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-M12
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-M12
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2874
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.2677
Thickness range0.2500 to 0.3500
Width0.8661
