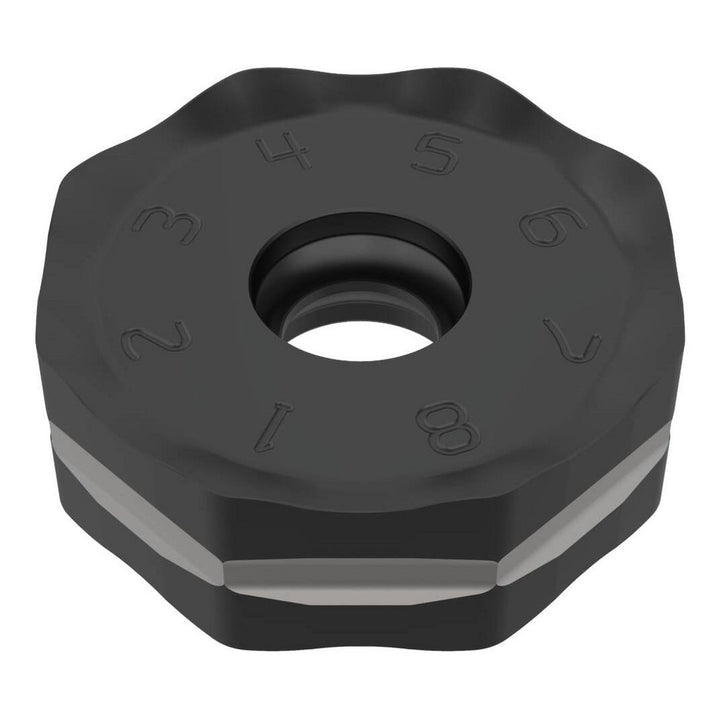

ONMU090520ANTN-ME12 Solid Carbide Insert, Grade MM4500, TiCN - Seco 02747741
MFR# 02747741ISO/ANSI# ONMU090520ANTN-ME12Cat# ONMU090520ANTN-ME12Series ONMU-09
$43.20List $55.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMM4500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02747741 is a ONMU090520ANTN-ME12 solid carbide indexable insert, grade MM4500, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeONMU090520ANTN-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.2874
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-ME12
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-ME12
Manufacturer gradeMM4500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.2874
Multi use toolYes
Number of cutting edges16
Primary workpiece materialStainless Steel
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.2677
Thickness range0.2500 to 0.3500
Width0.8661
