Seco

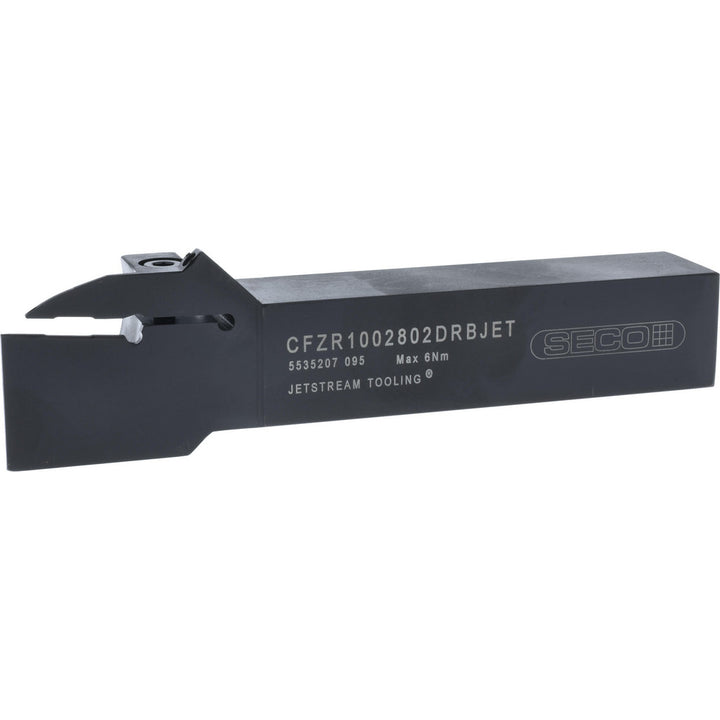

Indexable Turning & Profiling - Seco 02749014
MFR# 02749014Cat# CFZR 100 2802DRBJETSeries Multi-Directional Turning (MDT)
$418.83List $444.96
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02749014 indexable turning & profiling. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeLC2802
Cutting directionRight Hand
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length2.0300
Insert compatibilityLC.. 2802..
Insert holding methodClamp
Insert width0.0790
Lead angle90.0
Manufacturers catalog numberCFZR 100 2802DRBJET
Maximum depth of cut2.2100
Multi use toolYes
Overall length in6
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCFZR
