Seco

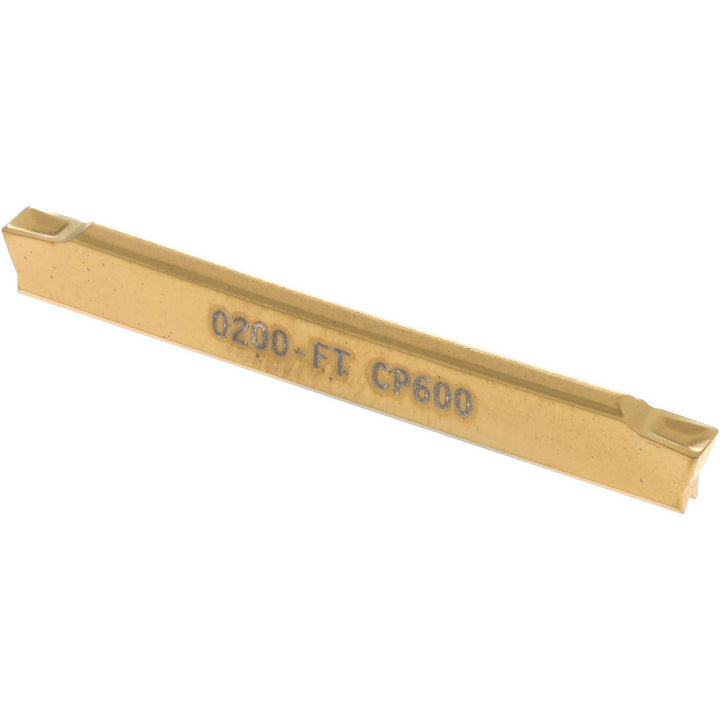

Solid Carbide Insert, Grade CP600, Coated - Seco 02749196
MFR# 02749196Cat# LCMF280202-0200-FTSeries MDT
$41.26List $52.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP600
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02749196 is a solid carbide indexable insert, grade CP600, Coated coated.
Specifications
ApplicationsGrooving
ChipbreakerFT
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting height0.1120
Insert handNeutral
Insert length1.1020
Insert materialSolid Carbide
Insert size code280202
Insert styleLCMF
Manufacturers catalog numberLCMF280202-0200-FT
Manufacturer gradeCP600
Material gradeC5
Maximum cutting width0.0790
Thickness0.1120
