Seco

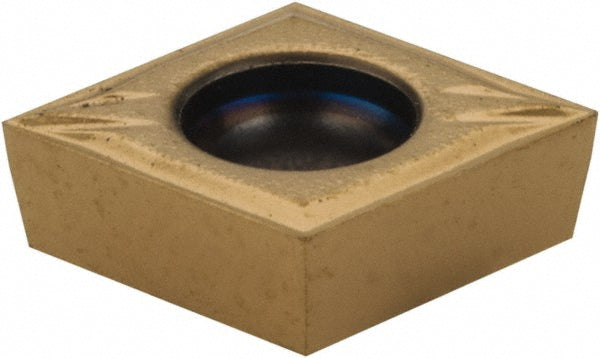

CCGT060201-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02754227
MFR# 02754227ISO/ANSI# CCGT21.50-MF2Series CCGT-MF2
$20.46List $26.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02754227 is a CCGT060201-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCGT21.50-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060201-MF2
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02754227
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2520
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
