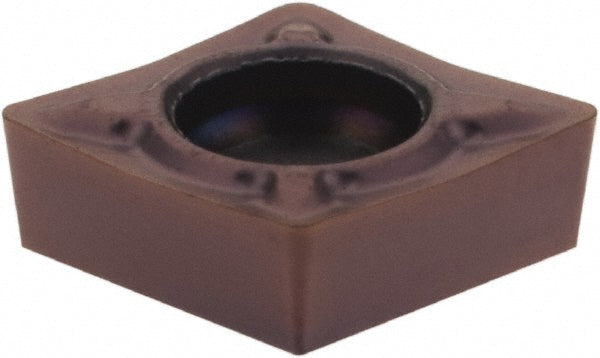

CCMT060204-F1 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02754792
MFR# 02754792ISO/ANSI# CCMT21.51-F1Series CCMT-F1
$11.62List $14.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02754792 is a CCMT060204-F1 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCermet
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02754792
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.2362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
