Seco

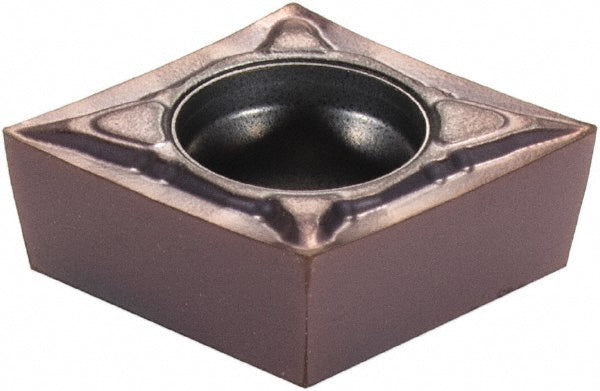

CCMT09T302-F1 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02754806
MFR# 02754806ISO/ANSI# CCMT32.50.5-F1Series CCMT-F1
$17.02List $21.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02754806 is a CCMT09T302-F1 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeDiamond 80
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02754806
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.3740
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
