Seco

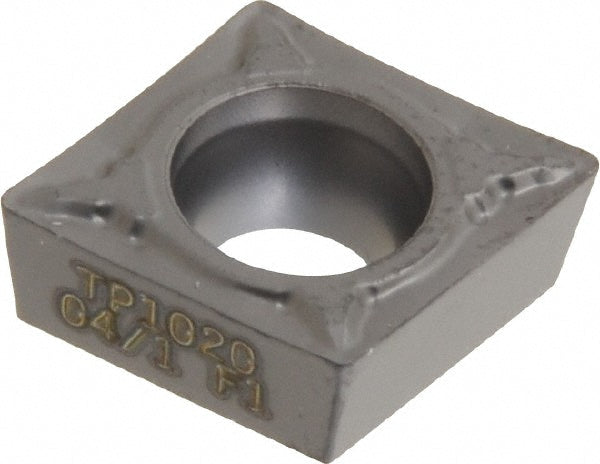

CCMT09T304-F1 Cermet Insert, Grade TP1020 - Seco 02754811
MFR# 02754811ISO/ANSI# CCMT32.51-F1Series CCMT-F1
$14.66List $18.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP1020
MaterialCermet
Description
The Seco 02754811 is a CCMT09T304-F1 cermet indexable insert, grade TP1020. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02754811
Manufacturer gradeTP1020
Material gradeP15
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
