Seco

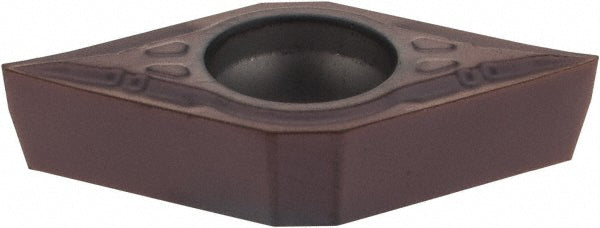

DCMT11T302-F1 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02754849
MFR# 02754849ISO/ANSI# DCMT32.50.5-F1Series DCMT-F1
$24.35List $30.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02754849 is a DCMT11T302-F1 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCermet
Insert shapeDiamond 55
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02754849
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.4488
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
