Seco

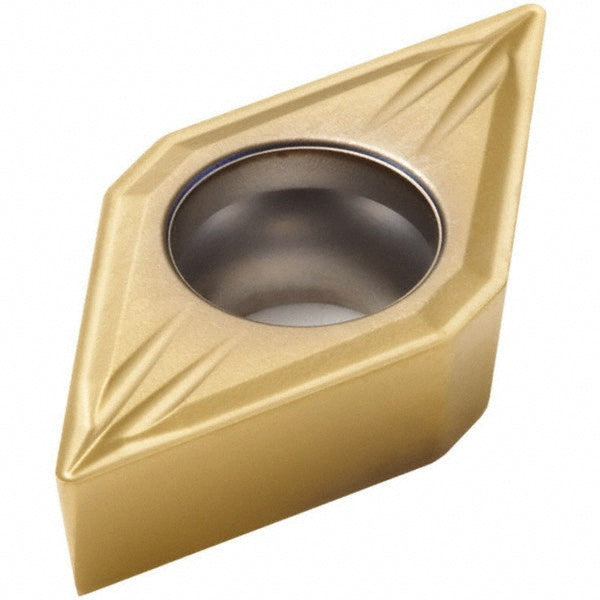

DCGT11T304-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755036
MFR# 02755036ISO/ANSI# DCGT32.51-MF2Series DCGT-MF2
$27.72List $35.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02755036 is a DCGT11T304-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCGT32.51-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-MF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02755036
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
