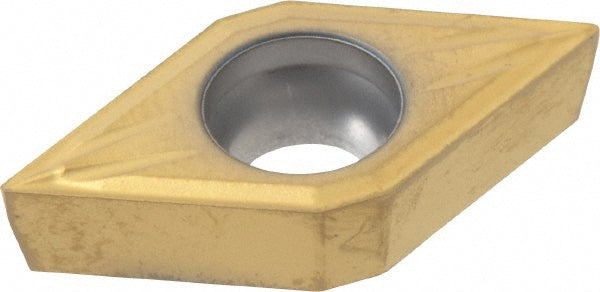

DCMT11T302-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755039

Seco

DCMT11T302-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755039

MFR# 02755039ISO/ANSI# DCMT32.50.5-MF2Series DCMT-MF2

$19.87List $25.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02755039 is a DCMT11T302-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.50.5-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302-MF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02755039
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4488
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
