Seco

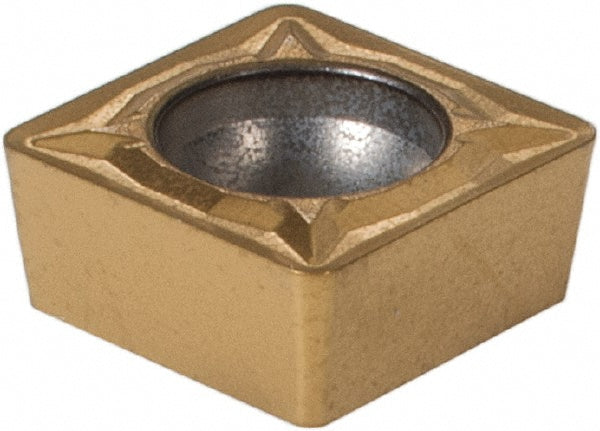

SCMT09T308-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755042
MFR# 02755042ISO/ANSI# SCMT32.52-MF2Series SCMT-MF2
$14.90List $19.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02755042 is a SCMT09T308-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle90degree
Industry standard numberSCMT32.52-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT09T308-MF2
Lead angle90degree
Length range0.3000 - 0.4000
Manufacturers catalog number02755042
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3425
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
