Seco

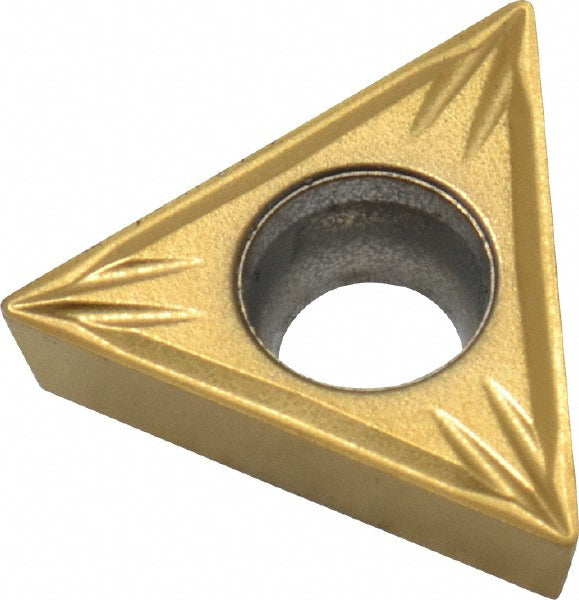

TCMT16T304-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755045
MFR# 02755045ISO/ANSI# TCMT32.51-MF2Series TCMT-MF2
$22.29List $28.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02755045 is a TCMT16T304-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.51-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304-MF2
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number02755045
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6102
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
