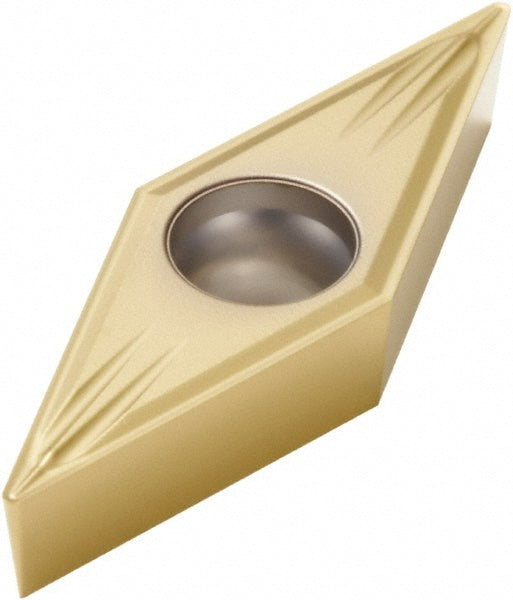

VBMT110204-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755048

Seco

VBMT110204-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755048

MFR# 02755048ISO/ANSI# VBMT21.51-MF2Series VBMT-MF2

$21.97List $28.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02755048 is a VBMT110204-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF2
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle35degree
Industry standard numberVBMT21.51-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond 35
Insert size code21.51
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT110204-MF2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02755048
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4173
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
