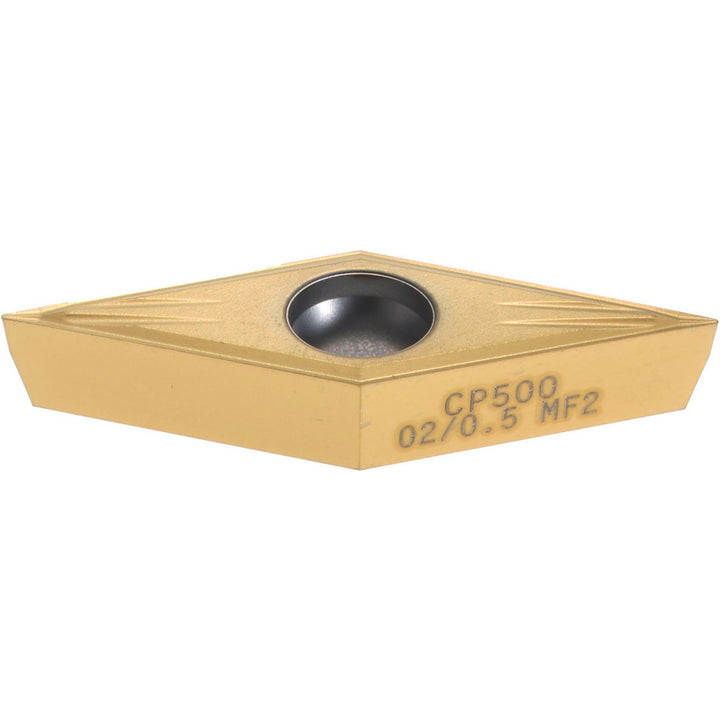

VBMT160402-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755323

Seco

VBMT160402-MF2 Carbide Insert, Grade CP500, TiAlN - Seco 02755323

MFR# 02755323ISO/ANSI# VBMT160402Series VBMT-MF2

$26.10List $33.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02755323 is a VBMT160402-MF2 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeVBMT330.5
Ansi size code330.5
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT330.5-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160402-MF2
Iso insert codeVBMT160402
Iso size code160402
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02755323
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6339
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
