Seco

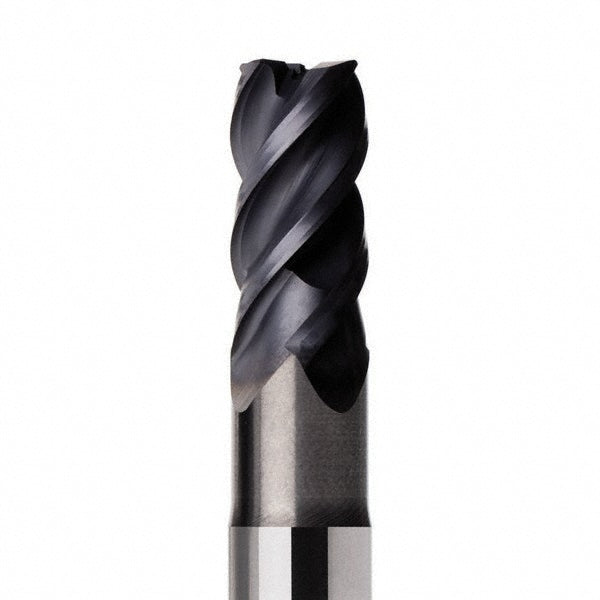

0.2362" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 02760834

MFR# 02760834Series JHP780

$85.83List $106.38 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 02760834 is a 0.2362 4-flute Solid Carbide (Micrograin) corner radius end mill with a MEGA-64 finish for longer tool life. Suited for stainless steel, high temperature alloy. Series JHP780.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Corner radius0.0118

Corner radius tolerance0.02000 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut0.4724

Length typeShort

Material applicationStainless Steel; Superalloy

Material gradeMicrograin

Material removal typeRoughing

Mill diameter0.2362

Mill diameter tolerance-0.02/-0.03 mm

Neck diameter0.2200

Number of flutes4

Overall length (mm)60.00

Primary workpiece materialStainless Steel; High Temperature Alloy

Reach length (mm)18.00

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
