Seco

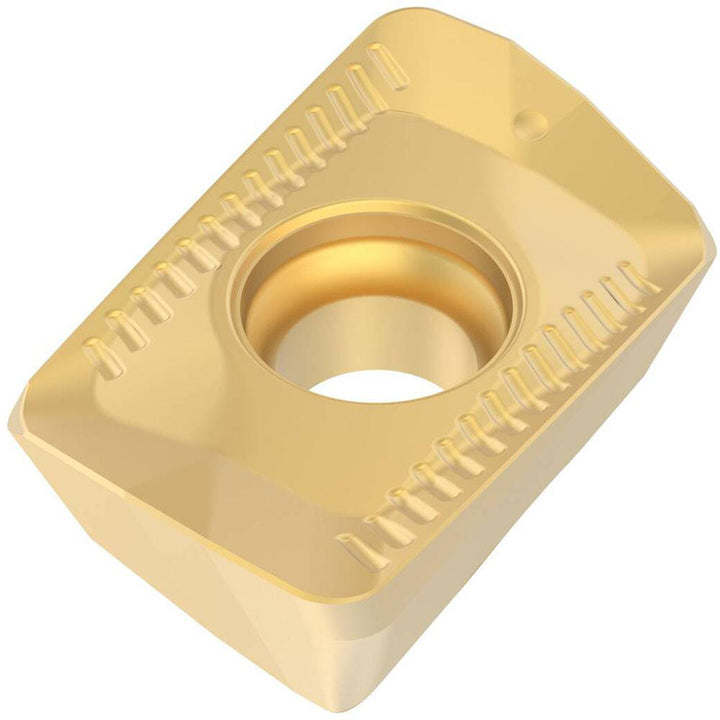

XOMX10T304TR-ME07 Solid Carbide Insert, Grade F40M, Coated - Seco 02768525
MFR# 02768525ISO/ANSI# XOMX10T304TR-ME07
$23.07List $29.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02768525 is a XOMX10T304TR-ME07 solid carbide indexable insert, grade F40M, Coated coated. Suited for universal.
Specifications
Chip breakerME07
Coating finishCoated
Coating processPVD
Convex radius0.0160
Cutter series compatibilityR217/220.69-10
Cutting directionRight Hand
Cutting edge effective length0.3660
Cutting edge styleChamfered & Honed
Inscribed circle0.2700
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10T304
Insert size code10
Insert styleXOMX
Iso codeXOMX10T304TR-ME07
Manufacturer gradeF40M
Material gradeFine Grain
Number of cutting edges2
Primary workpiece materialUniversal
RakePositive
Relief angle15.00
StandardsISO
Thickness0.1510
Thickness range0.1500 to 0.1750
Width0.2700
