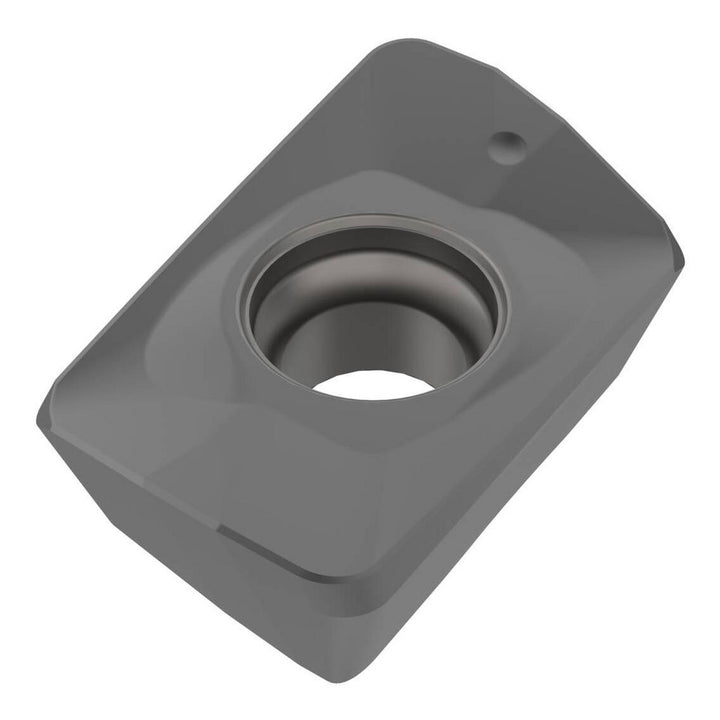

XOMX10T304TR-M09 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02768570

Seco

XOMX10T304TR-M09 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02768570

MFR# 02768570ISO/ANSI# XOMX10T304TR-M09Cat# XOMX10T304TR-M09Series XOMX-10

$24.17List $31.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02768570 is a XOMX10T304TR-M09 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeXOMX10T304TR-M09
Chip breakerM09
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3661
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleXOMX
Iso codeXOMX10T304TR-M09
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX10T304TR-M09
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.3661
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle10.6
Relief angle15.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1508
Thickness range0.1500 to 0.1750
Width0.2717
