Seco

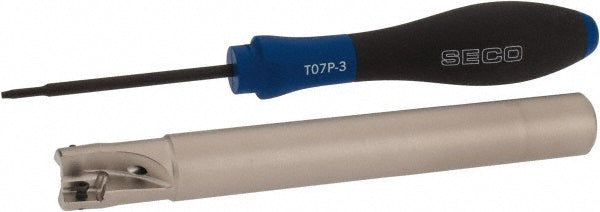

Indexable End Mills - Seco 02772633
MFR# 02772633Cat# R217.69-00.625-0-10-2ASeries Turbo 10
$494.07List $524.89
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02772633 indexable end mills. Series Turbo 10.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-10
Cutting diameter5/8
Head length1.083
Insert compatibilityXO.X 10T3..
Insert holding methodScrew
Iso numberR217.69-00.625-0-10-2A
Lead angle90
Manufacturers catalog numberR217.69-00.625-0-10-2A
Maximum depth of cut0.3540
Maximum rpm29400
Number of cutter inserts2
Number of flutes2
Overall length5.3150
RakeNegative
Shank diameter in5/8
Shank length4.2320
Shank typeCylindrical
Tool applicationMilling
Tool materialSteel
